PRODUCTION AND CUSTOM LIFT MAST ASSEMBLIES

Working for Material Handling Manufacturers

as a reliable, specialized outsource manufacturing partner...

A Reliable, Knowledgeable Partner Who Compliments Your Respective Brand...

Our production and semi-custom mast assemblies offer expert design and dedicated manufactured solutions, unlike other fabricators who generalize or have conflicting needs.
We do this through our extensive experience in mast design, manufacturing process, and aftermarket parts support, demonstrated through the long-term partnerships we continue to enjoy..

A Resourceful Partner That Delivers…

As an experienced supplier of fork truck masts for over 30 years to OEMs in North America, the Superior Fabrication Team has a venerable track record of providing reliable masts assemblies with exceptional on-time delivery and outstanding customer service.

In addition, we deliver engineering support to supplement your OEM engineering staff, whether your design or an indigenous design of our own. Our parts and customer service team are here to support both you and your respective dealer network to meet all your parts requirements.

Experts at Industrial Lift Tuck

Mast & Carriage Design

Experts at Industrial Lift Tuck

Mast & Carriage Design

Superior Fabrication offers a variety of 2 and 3 stage mast lines and carriages for Industrial, rough terrain, and truck-mounted applications.

We offer special carriages for fruit and produce handling,  steel coil and billet, block, pipe, paper tolls, just to mention a few.

There are a multitude of hydraulic carriage functions as well to choose from:

    • Side-shifting
    • Fork positioning
    • Swing shifting
    • Slope piling

Contact us to discuss your production or project needs!

Superior Fabrication

Additional Capabilities

Assembly

Inspection

End of Line Testing

Inspection Levels

Painting

VIEW AVAILABLE LIFT MAST OPTIONS

Differentiating

Mast Assembly Features

Exclusive all I-Beam construction provides superior strength at the most
critical location, maximum lift height, where the greatest forces are present.
Testing included a 300% load test
The design has the versatility to employ either thrust pads
or thrust rollers on the carriage for increased stability
Proprietary chain coating prevents corrosion prior to commissioning even in
high temperature environments.
Our masts offer easier access to replacement parts than most competitors
The design incorporates high visibility for increased safety
Flooded displacement cylinders are used
for longer life and less maintenance
Robust Construction for Heavy duty industrial and rough terrain use
Minimum Chain Safety factor of 5.0
Made in North America

Differentiating

Mast Assembly Features

Exclusive all I-Beam construction provides superior strength at the most critical location, maximum lift height, where the greatest forces are present. Testing included a 300% load test The design has the versatility to employ either thrust pads or thrust rollers on the carriage for increased stability
Proprietary chain coating prevents corrosion prior to commissioning even in high temperature environments. Our masts offer easier access to replacement parts than most competitors
The design incorporates high visibility for increased safety
Flooded displacement cylinders are used for longer life and less maintenance Robust Construction for Heavy duty industrial and rough terrain use Minimum Chain Safety factor of 5.0 Made in North America

Your Source For

ATTACHMENTS & FUNCTIONALITY

In our 40-year history, we have acquired several material handling product lines, such as Knickerbocker, Brudi and Swingshift. The attainment of these lines has allowed Super Fab to compete in a wide variety of industries, such as agriculture, oil and gas, mining, construction, and forestry. Today, we continue to build, service, and improve these products to better serve our wide breadth of customers.

Super Fab can offer a diverse assortment of carriages and attachments in a range of mounting styles and capacities. Mounting styles include: ITA Classes II-V, pin, bolt-on, welded/fixed, integrals, as well as custom mounting. Standard carriages and attachments from Super Fab offer capacities up to 36,000 pounds, and customized units can be designed to achieve even higher capacities. Our innovative designs are not limited to forklift truck attachments, but are available to a wide range of material handling equipment, as well.

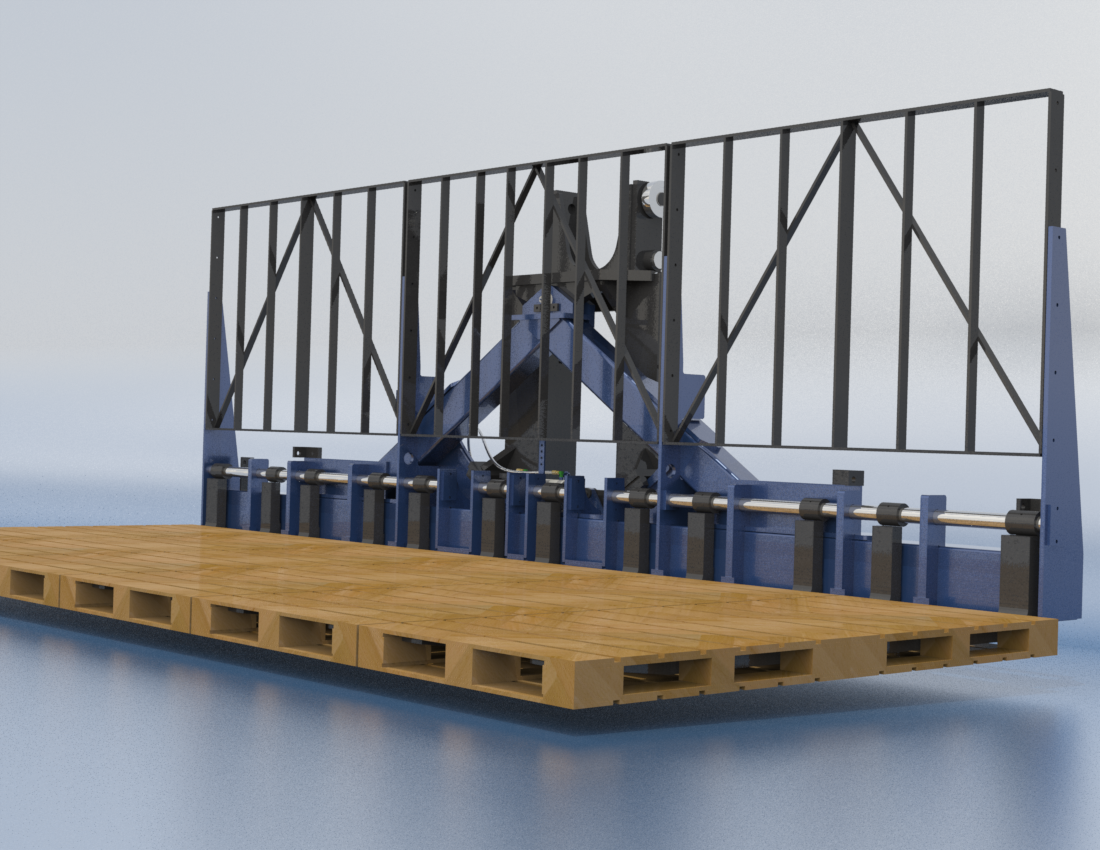

PRODUCE HANDLER

This carriage is capable of handling up to twelve (12) pallets at one time. The produce handler can also be load-leveling—ideal for the commercial agricultural market.

Today’s agricultural industry demands high productivity, reliability and effectiveness; Superior Fabrication Company, LLC’s Produce Handler can help your application attain all three.

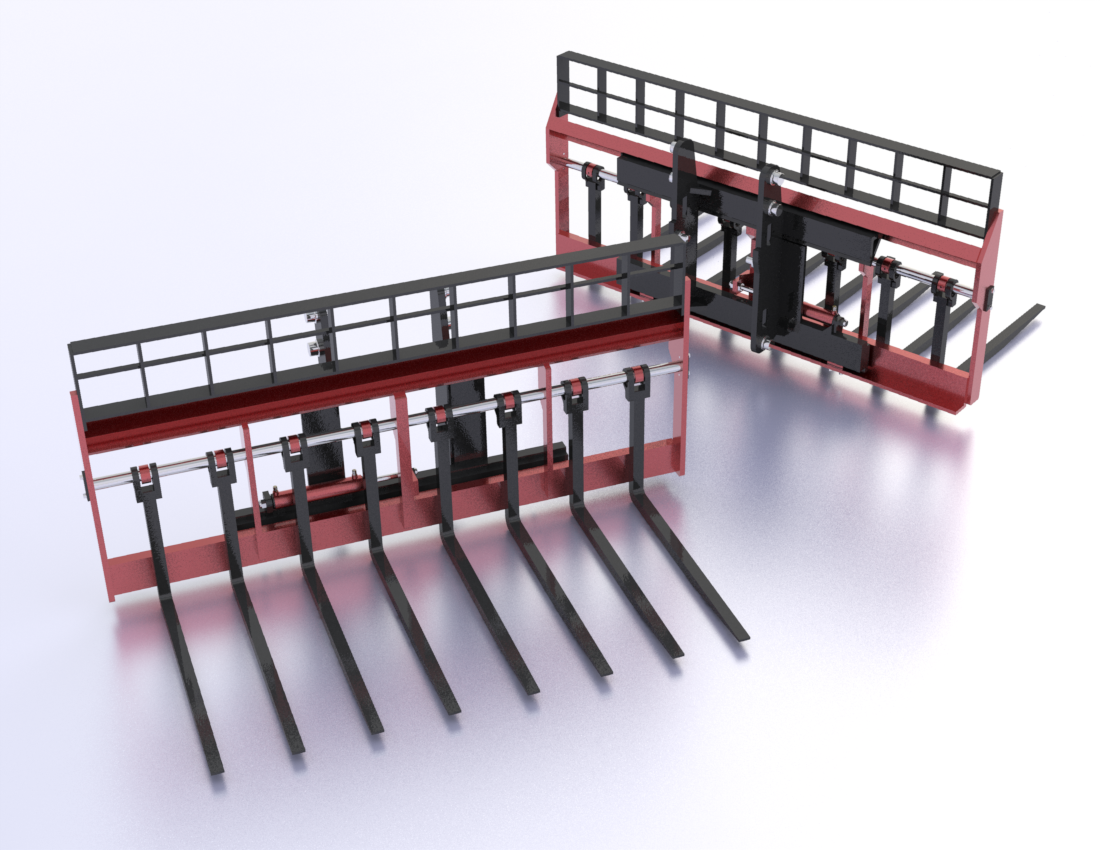

SINGLE BLOCK HANDLER

Specifically designed for easy handling of concrete blocks, this attachment can hold a single unit of blocks.

This product is available to customers with the option of sideshifting capabilities to allow for safe maneuvering, as well as stress-free stacking on any terrain.

DOUBLE BLOCK HANDLER

Doubling the capacity of the single block handler, the double block handler can make your operation more efficient and effective.

With side-shifting ability for each block stack, this attachment increases productivity, accuracy and safety within the work environment.

FORK POSITIONER

Hydraulically powered fork positioners provide the driver with the ability to move the forks for optimal placement under loads, without the need to leave the truck.

This carriage is exceptionally useful with high capacity trucks, in applications where forks are too heavy to move by hand. Fork positioning carriages can be tailored to your material handling needs, through simultaneous or independent fork movements.

SLOPE PILING CARRIAGES

The slope piler attachment allows the operator to adjust loads to the slope of the ground and/or truck bed.

This attachment is ideal for job site use on grades and uneven terrain. The slope piler is, both, side-shifting, and available with fork positioning..

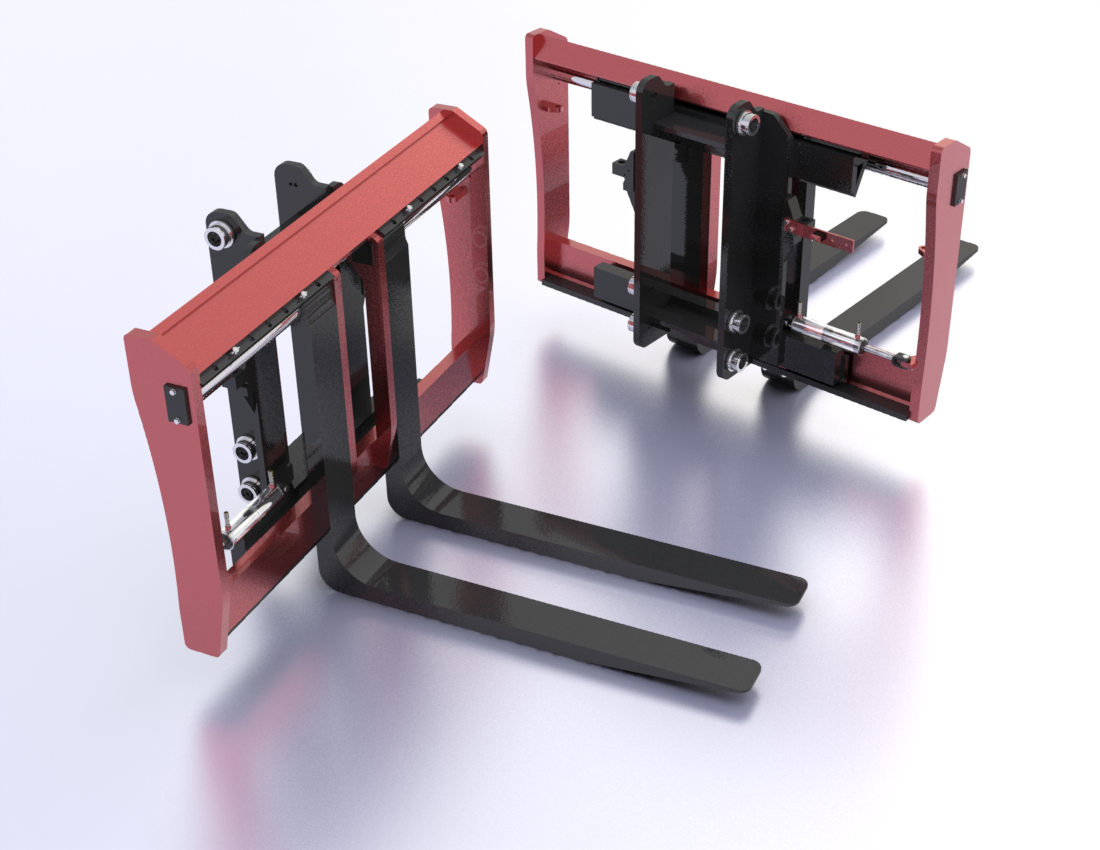

SIDE SHIFTING

This carriage allows drivers to move loads side to side for the best positioning. A cylinder is mounted to the base carriage to allow for movement.

Side-shift carriages are also available with fork-positioning capabilities. Side-shift carriages offer a simple, but effective solution to save time in a variety of material handling applications.

Drivers will spend less time trying to accurately place trucks, and more time towards accurately placing loads.

SWINGSHIFT CARRIAGES

The swingshift carriage is used to position loads at an angle to the direction of the truck travel by swinging the carriage 10 to 20 degrees about the vertical axis.

Swingshift Carriages most commonly come with side-shifting capabilities and can be equipped with fork positioning.

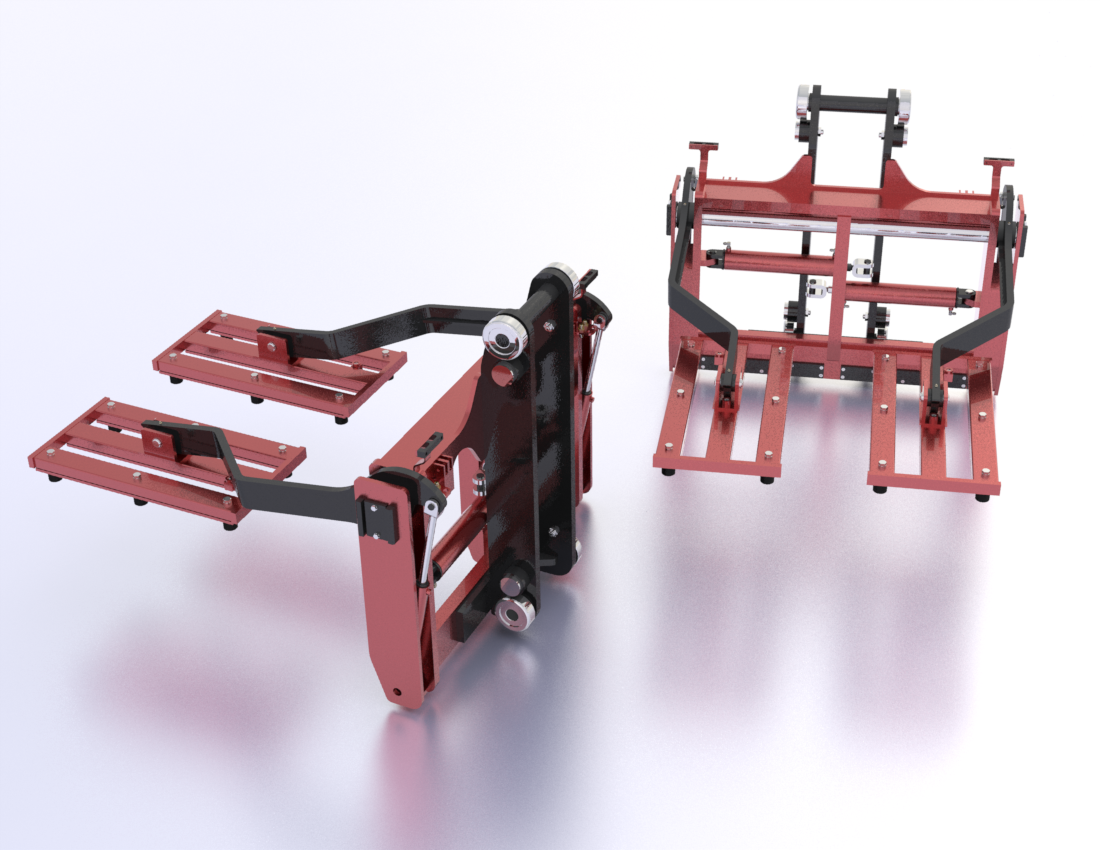

STABILIZER CARRIAGES

Paired with standard forks, the load stabilizer is designed to keep fragile and unstable loads secure.

Use of the stabilizer attachment is ideal when handling precision equipment, liquid-filled containers, as well as other delicate loads.

REACH CARRIAGES

The reach attachment will transform a standard truck into a reach truck; the reach attachment allows the operator to lift and place units with minimal movement of the truck.

This attachment is the ideal solution for unloading trailers near busy roads; with the use of the reach attachment, the operator can remain on one side of the trailer while unloading both sides, allowing for optimal safety.

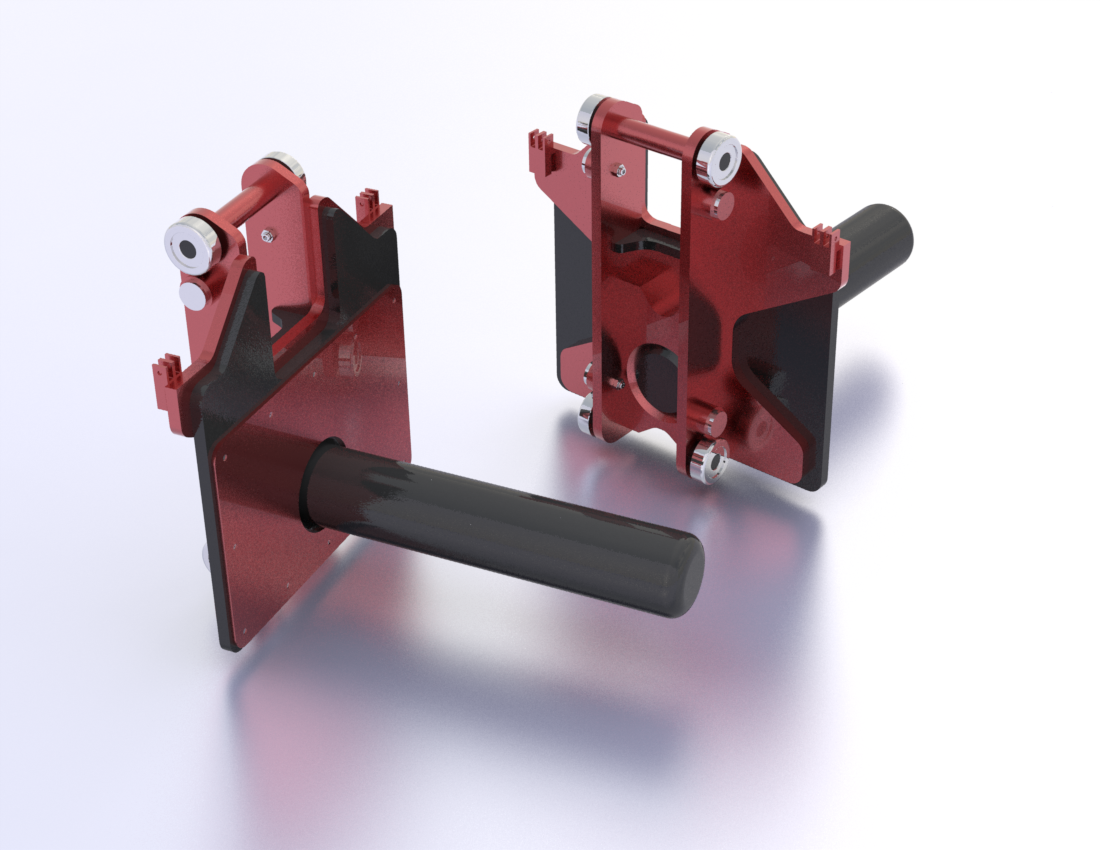

RAM CARRIAGES

Rams are designed for the handling of rolled or coiled materials, such as banded steel, carpet, wire, and iron.

The ram attachment is the perfect accompaniment to your truck, as it allows for ease of handling when transporting rolled or coiled materials, without causing damage to your load.

VIEW AVAILABLE LIFT MAST OPTIONS

Contact Us

Superior Fabrication is here to provide you with the engineering and manufacturing expertise to execute your most challenging projects where superior strength matters.

Message Us

How to read a mast tag

  • Part number – 328/00766 = the customer part number
  • Model No – 6EWMVR designates that this is a 6K mast/carriage
  • Specs: OHL 127 (Overall height lowered) MFH 264 (max fork height) FL 0 (no free lift)
  • Cylinder numbers:
    Primary: 73-315-264
    Secondary: NA
    Serial No: 733495-13265-211
    73-349-5 mast/carriage part number
    13265 serial number
    211 means this was built February 2011
